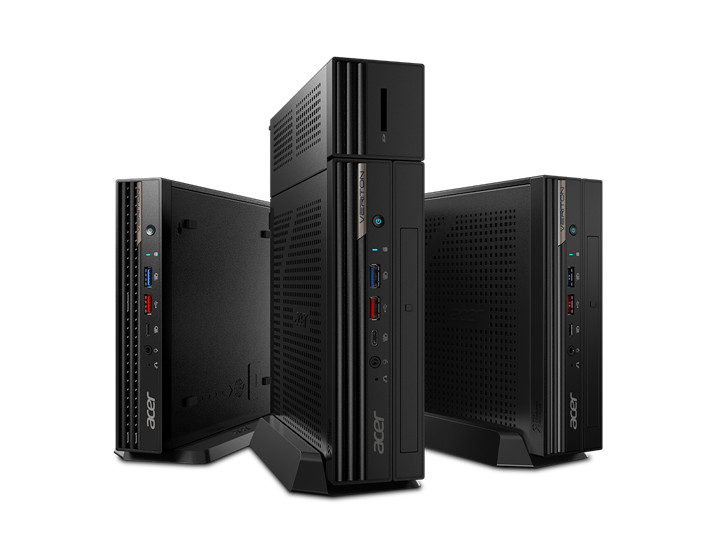

VERITON N MINI SERIES - DESKTOP NHỎ GỌN CHO DOANH NGHIỆP

Veriton N4690G/N4690GT/N6690G

12th Gen Intel® Core™ vPro® Processor
Expandable Design with 1-liter Add-ons
VESA Mountable
Wi-Fi 6E Connectivity

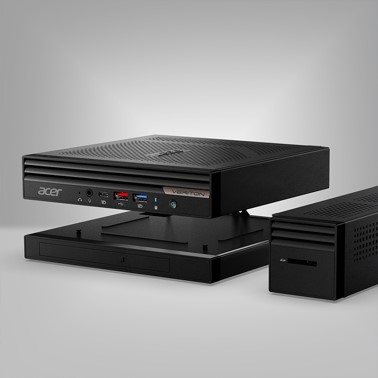

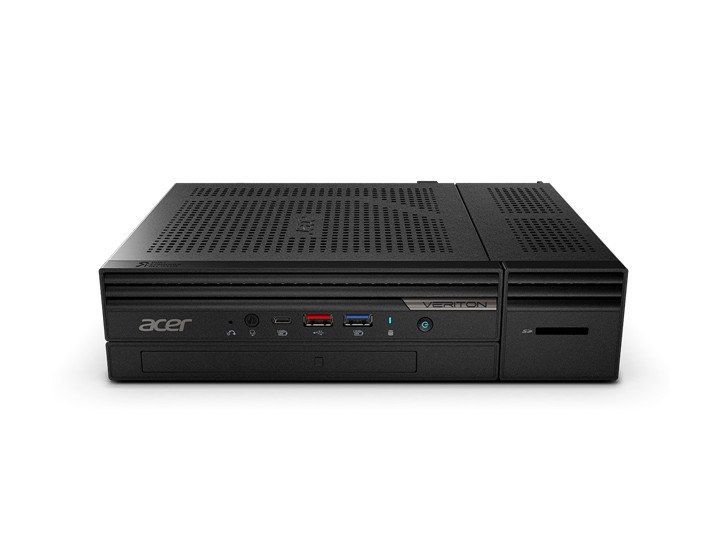

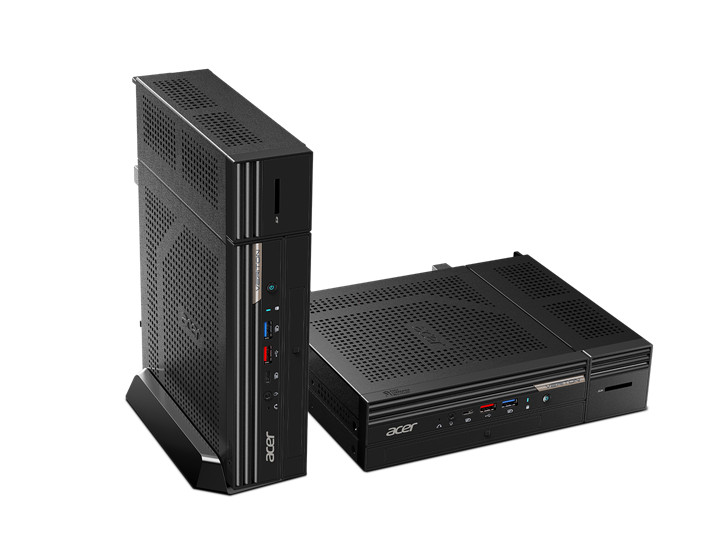

Mini PC with a Modular Design

This space-saving and expandable mini PC for work is customizable with extra 1-liter add-ons for additional graphic cards, optical disc drives, storage, SD card readers, and various ports.

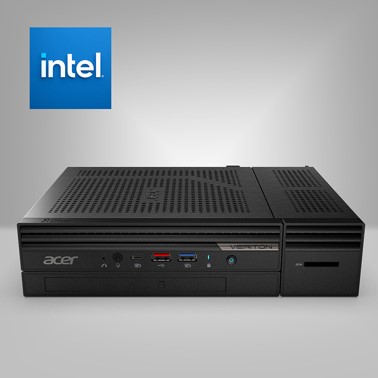

Optimized Performance

The latest 12th Gen Intel® Core™ vPro™ processors in combination with the up to 64GB DDR4 memory all packed neatly in the ventilated chassis provide ultra-fast responsiveness and efficient thermal cooling.

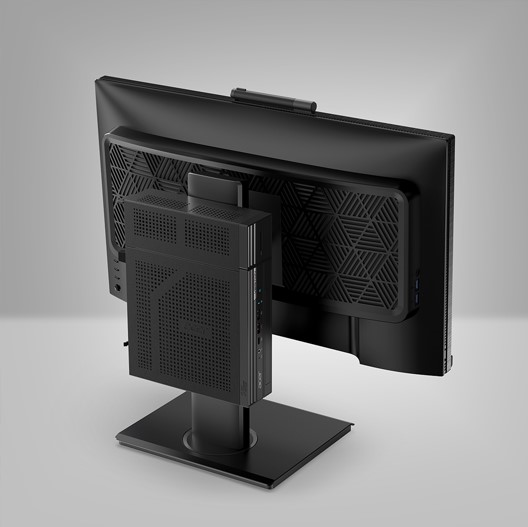

VESA Mountable

Find your ideal placement with the sturdy support of a VESA mount. Conceal the entire desktop behind your monitor for an uncluttered, minimalist, and efficient office environment.



Mount sold separately.

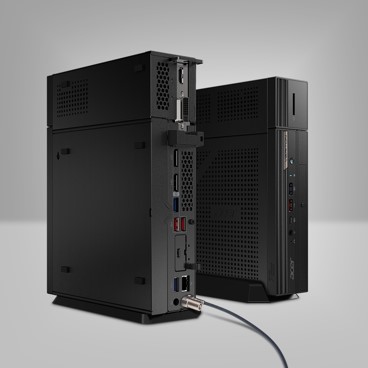

Impeccable Security

Achieve enterprise-level security and manageability with Intel® vPro™ technology1, 3. Workplace data is further secured with TPM 2.0 and the Kensington lock to provide physical protection to your data.



Intel® vPro™ technology only available for Veriton N6690G with Intel® vPro™ processor.

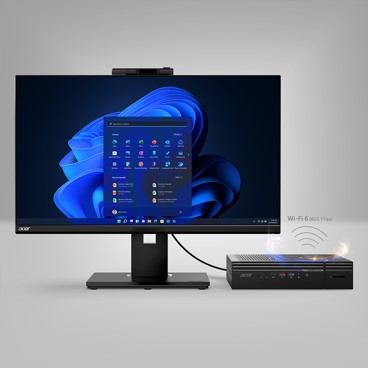

Plenty of Ports

Get plenty of connectivity options with the fast and stable Wi-Fi 6E (802.11ax)1 and an array of USB and display ports, including a USB 3.2 Gen 2 Type-C1 port with simultaneous high-speed data transfer and charging.

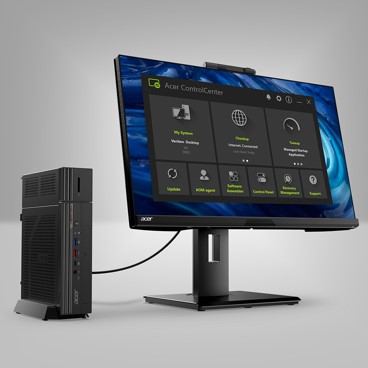

Greater Manageability

Enjoy a dedicated set of commercial management tools such as Acer Office Manager and Acer Control Center to help better manage your fleet of office PCs.

THÔNG SỐ KỸ THUẬT

ModelVeriton N4690G/N4690GT/N6690G
Operating system
  • Windows 11 Pro (Acer recommends Windows 11 Pro for business.)
  • Windows 11 Home
  • UEFI Shell
CPU and chipset12th Generation Intel® Core™ i9 vPro® / i7 vPro® processor, Intel® UHD Graphics 770 (N6690G only)
12th Generation Intel® Core™ i5 vPro® processor, Intel® UHD Graphics 750 (N6690G only)
12th Generation Intel® Core™ i9 processor, Intel® UHD Graphics 770
12th Generation Intel® Core™ i7 processor, Intel® UHD Graphics 770
12th Generation Intel® Core™ i5 processor, Intel® UHD Graphics 750 / 730
12th Generation Intel® Core™ i3 processor, Intel® UHD Graphics 730 (N4690G / N4690GT only)
Intel® Pentium® Gold processor, Intel® UHD Graphics 710 (N4690G / N4690GT only)
Intel® Celeron® processor, Intel® UHD Graphics 710 (N4690G / N4690GT only)
Chipset: Intel® Q670 Chipset (N6690G only)
Intel® B660 Chipset (N4690G / N4690GT only)
Memory

32 GB / 16 GB / 8 GB / 4 GB DDR4 3200 MHz soDIMM
Up to 64 GB of Dual-channel DDR4 3200 MHz

Storage

Hard disk drive
• 2 TB / 500 GB 2.5-inch 5400 RPM
• 1 TB 2.5-inch 5400 RPM, 7 mm high
• 1024 GB / 512 GB / 256 GB M.2 2280 PCI-E SSD

Optical media drive

8X DVD-RW drive, 9.0 mm slim, tray-load, M-DISC ReadyTM

Graphics

NVIDIA® GeForce® GT 730 with 2 GB of DDR3 (supporting: DVI, HDMI®) (N6690G / N4690G only)
NVIDIA® GeForce® GT 720 with 2 GB of DDR3 (supporting: DVI, HDMI®) (N6690G / N4690G only)

Audio

Integrated high-definition sound

Communication

WLAN:
802.11ax/ac/a/b/g/n, Wi-Fi 6E and Bluetooth® 5
802.11ax/ac/a/b/g/n, Wi-Fi 6 and Bluetooth® 5

LAN:
Gigabit Ethernet

Expansion slot(s)

N6690G:
PCIe x16 slot: 0, 1
M.2 slot (for SSD): 2
M.2 slot (for WLAN): 1

N4690G / N4690GT:
PCIe x16 slot: 0, 1
M.2 slot (for SSD): 1
M.2 slot (for WLAN): 1

Commercial features

Intrusion alert (via BIOS)
One-button recovery (OBR)
Kensington lock slot
100% solid capacitors TPM v2.0 (Trusted Platform Module)
WOL (Wake On Lan)
PXE (Preboot eXecution Environment)
Hard drive password protection (via BIOS)

Commercial selected options

USB 3.2 Gen 2 Type-C port supporting data transfer, USB charger, video out and power delivery
USB 3.2 Gen 2 Type-C port supporting data transfer, USB charger and video out
COM (Series) port
VESA mounting kit Additional 2nd HDMI® port
Additional 2nd DisplayPortTM
Internal speaker
Additional D-SUB port
SD card reader module (N4690G / N6690G only)

Dimensions

186.3 (W) x 186.3 (D) x 36.2 (H) mm (7.33 x 7.33 x 1.43 inches)
186.3 (W) x 186.3 (D) x 56.3 (H) mm (7.33 x 7.33 x 2.22 inches)
243.8 (W) x 186.3 (D) x 56.3 (H) mm (9.6 x 7.33 x 2.22 inches) (N6690G / N4690G only)

Power supply and battery

3-pin 135 W AC adapter (N6690G / N4690G only)
3-pin 90 W AC adapter
3-pin 65 W AC adapter

System compliance

RoHS, DMI, GS, ENERGY STAR®, PC2001

Options and accessories

Wireless (2.4 GHz RF) keyboard and mouse
USB keyboard and mouse

Certification

BSMI
VCCI
CE
FCC CB
EPEAT Silver
TCO Certified (N4690GT only)
