PC CHUYÊN DỤNG CHO DOANH NGHIỆP VERITON M - VM4690

Máy tính bàn chuyên dụng cỡ vừa cho Doanh nghiệp Acer Veriton M VM4690 đem đến độ tin cậy cao và tuổi thọ lâu dài với 100% tụ điện rắn. Kết hợp cùng bộ xử lý Intel® Core™ i9 thế hệ thứ 12, người sử dụng Veriton M sở hữu hiệu suất làm việc cao, bảo mật thông tin tối ưu và khả năng quản lý chuyên nghiệp.

  • CPU Intel® Core™ i9 thế hệ 12
  • Tối đa 1TB M.2 2280 NVMe Gen 4 PCIe SSD
  • Kết nối Wi-Fi 6E

Empower Your Business

These high-performance business desktops are powered by Intel vPro® and feature up to the latest Intel® Core™ i9 processor for faster speeds, superior reliability, and advanced security features.

Full Speed Ahead

Boasting an up to 1TB M.2 2280 NVMe Gen 4 PCIe SSD and up to 128GB DDR4-3200 MHz memory, expect accelerated speeds and performance on nearly everything you do with this machine.

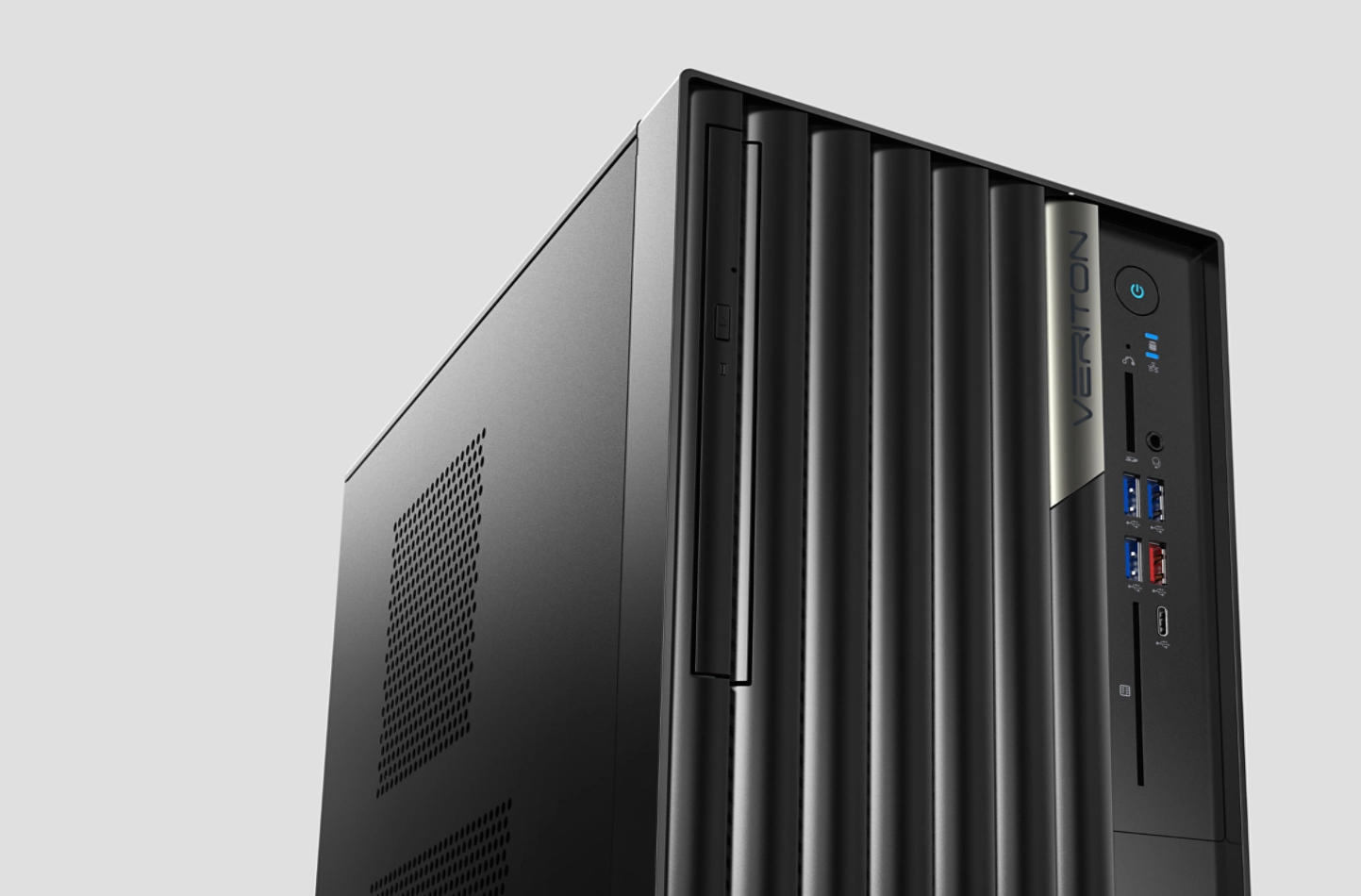

Expandable Configuration

This mid tower comes with two HDD drive bays with tool-less mounting brackets, a DVD drive, and four PCIe expansion slots including a PCIe x16 slot supporting an up to NVIDIA® GeForce RTX™ 3070 GPU.

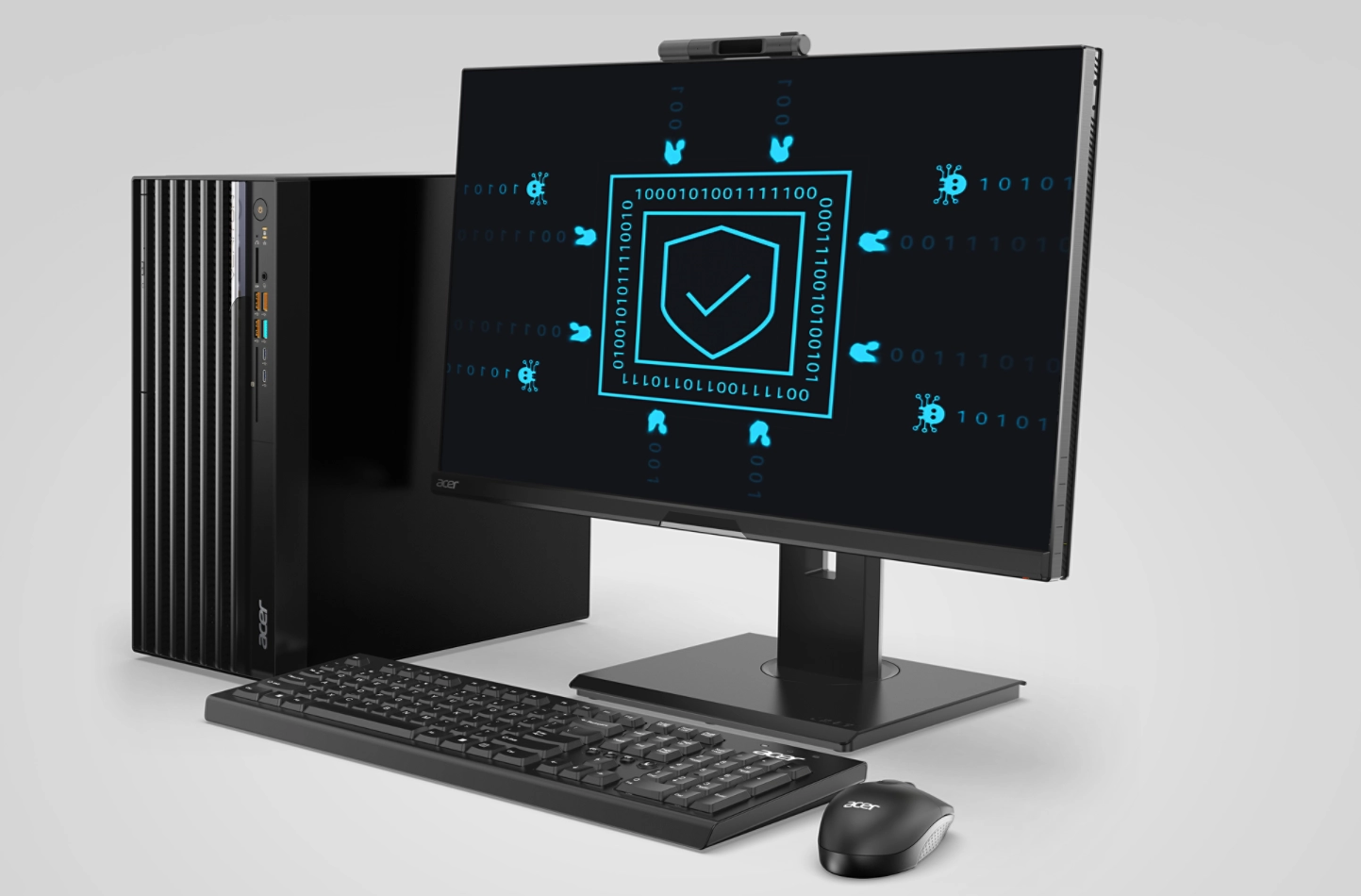

Dependable Security

Get an extra boost to security with Trusted Platform Module (TPM) 2.0. Intrusion Alert notifies users when the chassis is opened, and HDD Password Protection quickly secures your vital information from unknown access from inside or outside your organization.

Amplified Connectivity

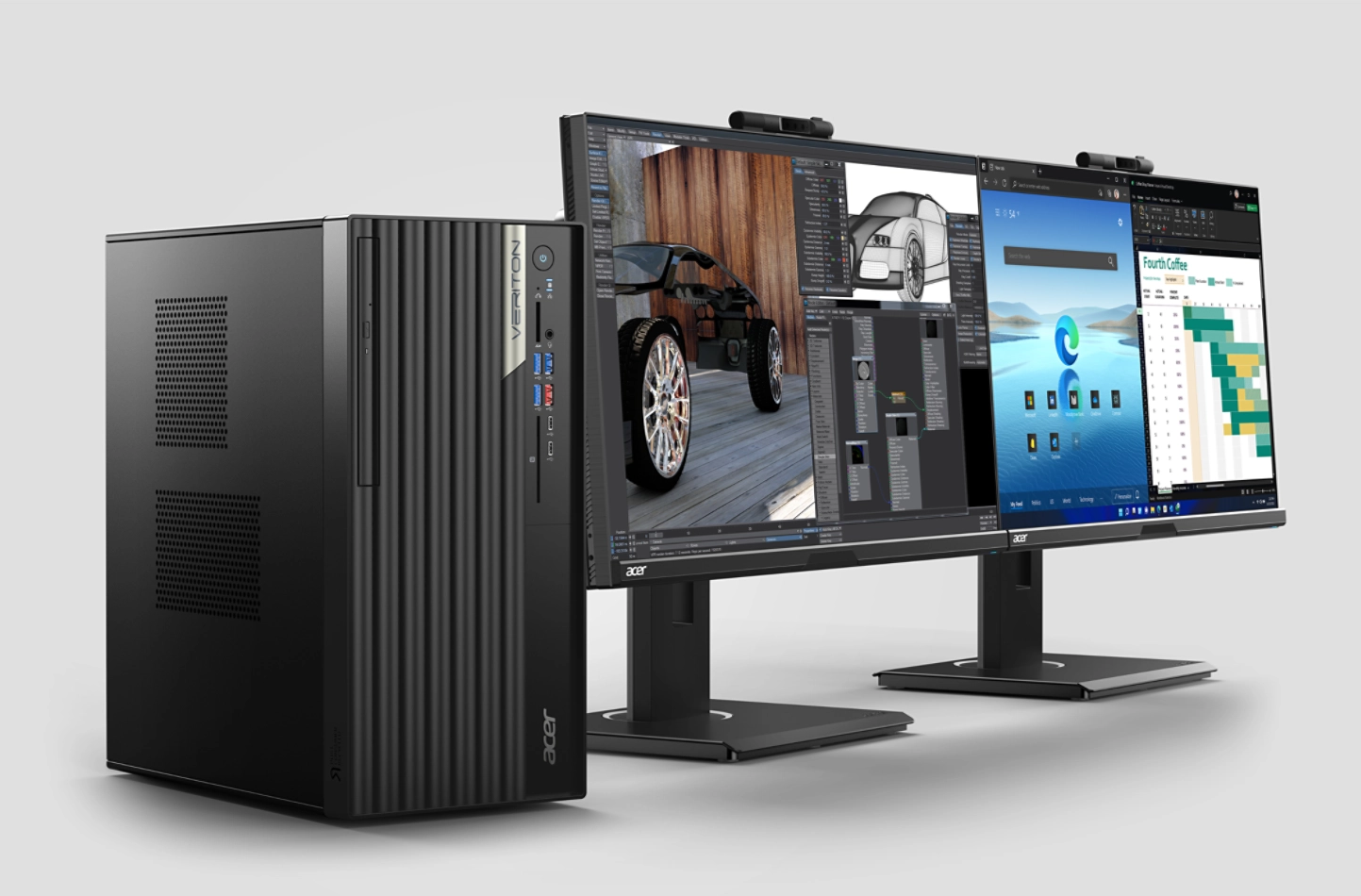

Enjoy fast and stable Wi-Fi 6E1 (802.11ax) connectivity. In addition, this mid tower supports up to 4 screens and is equipped with up to 12 USB ports, including a USB 3.2 Gen 2×2 Type-C with high-speed data transfer.

Easier Manageability

Intel vPro® allows administrators to deploy patches and upgrades across the entire local network. WakeOnLane further allows IT to remotely wake up all devices via LAN, while One Button Recovery makes it simple to enter Windows repair mode if and when a PC crashes.

THÔNG SỐ KỸ THUẬT CHI TIẾT

ModelAcer Veriton M VM4690
Hệ điều hànhWindows 11 Pro 64-bit
Bộ vi xử lý
  • Intel® Core™ i9-12900 12th Generation, 16 cores, 24 threads, 2.4 GHz up to 5.1 GHz, Smart Cache 30MB
  • Intel® Core™ i7-12700 12th Generation, 12 cores, 20 threads, 2.1 GHz up to 4.9 GHz, Smart Cache 25MB
  • Intel® Core™ i5-12600 12th Generation, 6 cores, 12 threads, 3.3 GHz up to 4.8 GHz, Smart Cache 18MB
  • Intel® Core™ i5-12500 12th Generation, 6 cores, 12 threads, 3.0 GHz up to 4.6 GHz, Smart Cache 18MB
  • Intel® Core™ i5-12400 12th Generation, 6 cores, 12 threads, 2.5 GHz up to 4.4 GHz, Smart Cache 18MB
  • Intel® Core™ i3-12300 12th Generation, 4 cores, 8 threads, 3.5 GHz up to 4.4 GHz, Smart Cache 12MB
  • Intel® Core™ i3-12100 12th Generation, 4 cores, 8 threads, 3.3 GHz up to 4.3 GHz, Smart Cache 12MB
  • Intel® Celeron® CDG6900, 2 cores, 2 threads, 3.4 GHz, Smart Cache 4MB
  • Intel® Pentium® Gold G7400, 2 cores, 4 threads, 3.7 GHz, Smart Cache 6MB
ChipsetIntel® B660 Chipset
Bộ nhớ tạm thời (RAM)32GB/ 16GB / 8GB / 4GB RAM DDR4 3200 MHz UDIMM
Lên đến 128 GB Dual-channel DDR4 3200 MHz
Bộ nhớ

HDD:

  • 2 TB / 1 TB 3.5-inch 7200 RPM
  • 1024 GB / 512 GB M.2 2280 PCI-e Gen4 SSD
  • 1024 GB / 512 GB / 256 GB M.2 2280 PCI-E SSD
Ổ đĩa quang8X DVD-RW drive, tray-load, M-DISC Ready™
Card đồ họa
  • NVIDIA® GeForce® GTX 1660 SUPER™ with 6 GB of GDDR6
  • NVIDIA® GeForce® GTX 1650 with 4GB of GDDR6
  • NVIDIA® GeForce® GT 730 with 2 GB of DDR3
  • NVIDIA® GeForce® GT 720 with 2 GB of DDR3
  • NVIDIA® T1000 with 4GB of GDDR6
  • NVIDIA® T400 with 8GB of GDDR6
  • NVIDIA® RTX3060 with 12GB of GDDR6
  • NVIDIA® RTX3070 with 8GB of GDDR6
  • NVIDIA® A2000 with 12GB of GDDR6
Âm thanhTích hợp âm thanh vòm 5.1 độ nét cao
Kết nối mạng

– WLAN:

  • 802.11ax/ac/a/b/g/n, Wi-Fi 6E and Bluetooth® 5
  • 802.11ax/ac/a/b/g/n, Wi-Fi 6 and Bluetooth® 5

– LAN: Gigabit Ethernet

Khe cắm mở rộng
  • PCIe x16 slot: 2
  • PCIe x1 slot: 1
  • PCI slot: 1
  • M.2 slot (for SSD): 2
  • M.2 slot (for WLAN): 1
Tính năng bảo trợ
  • TPM v2.0 (Trusted Platform Module)
  • Intrusion alert (via BIOS)
  • One-button recovery (OBR)
  • WOL (Wake On Lan)
Các tùy chọn khả dụng cho dự án
  • Parallel (printer) port
  • SD card reader module
  • Internal speaker
Kích thước335 (Dài) x 175 (Rộng) x 370 (Cao) mm (13.19 x 6.89 x 14.57 inches)
Nguồn điện
  • 500 W PFC, auto-sensing, 80PLUS® Gold, ATX
  • 400 W single-rail 12 V PFC, auto-sensing, 80PLUS® Gold, TFX
  • 300 W single-rail 12 V PFC (EuP), auto-sensing, 80PLUS® Bronze, TFX
  • 300 W single-rail 12 V PFC (EuP), auto-sensing, 80PLUS® Platinum, TFX
  • 180 W PFC, auto-sensing, 80PLUS® Bronze, TFX
Nhiệt độ & độ ẩm hoạt động

Nhiệt độ: 0oC đến 40oC
Độ ẩm: 10% đến 90% RH

Các tiêu chuẩnRoHS, DMI, GS, ENERGY STAR®

Các tùy chọn và linh kiện

  • Wireless (2.4 GHz RF) keyboard and mouse
  • USB keyboard and mouse
Chứng nhận

CE, FCC, CB
